Mechanical mini reducer

Types Of Mechanical Mini Reducer

Mini mechanical speed reducers come in various types. Each one is suitable for distinct operational requirements and applications. These reducers effectively reduce motor speed for smooth operation. They also enhance torque output at the same time.

Here are the common types of mechanical mini reducers:

Planetary Gear Reducers

Planetary gear reducers use a central 'sun' gear. It meshes with 'planet' gears housed within a 'ring' gear, their characteristic round design. This arrangement allows them to distribute load among multiple gears. This leads to higher torque and efficiency. They are, therefore, compact and provide a high reduction ratio in a small volume. Their robustness and performance make them ideal for industrial automation, robotics, and aerospace applications.

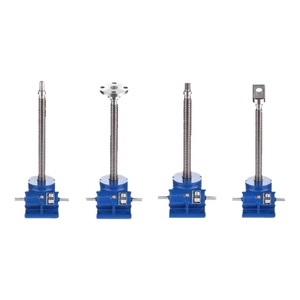

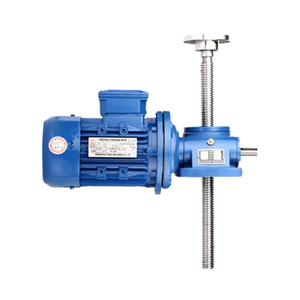

Screw Jack Reducers

Screw jacks convert rotational motion into linear motion using a screw and nut mechanism. They operate by transforming the motor's rotational motion into the linear motion of a load through mechanical advantage. This reduction in motion is also accompanied by an increase in torque, making screw jack reducers ideal for heavy lifting operations. These operations can be in structural adjustments or engine components.

Spur Gear Reducers

Spur gear reducers are the simplest type of gear reducer, consisting of two or more meshing spur gears. The drive gear, attached to the motor, turns the driven gear, which is connected to the output shaft. These are the most common type of gear reducer. Their simple design and easy installation make them popular in low to moderate torque applications. These are in the conveyor systems or electric vehicles.

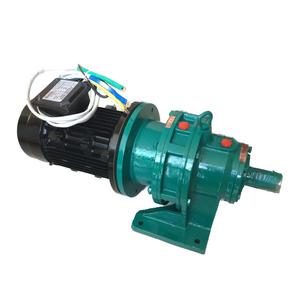

Cycloidal Gear Reducers

Cycloidal gear reducers operate differently from other gear types. They employ rotating eccentric cams with lobed indentations that engage cycloidal pins. This design allows for high load capacities and minimal backlash, making them suitable for precise heavy-duty applications. These applications could be in construction machinery or robotic arms.

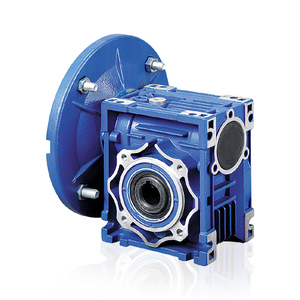

Worm Gear Reducers

Worm gear reducers, composed of a worm (screw) and a worm wheel (gear), are ideal for applications requiring a high reduction ratio and the ability to withstand high loads. The efficiency is high, and they are also very compact. Besides, they also have the benefit of preventing back-driving. This means the output will not rotate the input. All these make them suitable for hoisting equipment and mining machinery.

Industrial Applications Of Mechanical Mini Reducer

Mechanical mini-speed reducers are vital components in different machinery. There, they are used to lower speed while augmenting output torque. Hence, these have a key role in efficiency and performance. In so doing, they cater to various industrial applications across many industries.

Automotive

In automotive applications, mini mechanical speed reducers will be used in electric vehicle motors. They help reduce motor speed for effective wheel rotation. At the same time, these reducers boost torque to offer better acceleration and top speeds. They, therefore, enhance overall drivability and energy efficiency.

Aerospace

The mini reducers in aerospace applications can handle extreme conditions. They feature a compact design, which makes them weigh very little. This is very helpful in weight-sensitive applications, like satellite systems. The high efficiency and reliability of these speed reducers also contribute to their vigor in space mechanisms. They function well in robotic arms or satellite positioning systems to ensure accurate and reliable movements with minimal back play.

Robotics

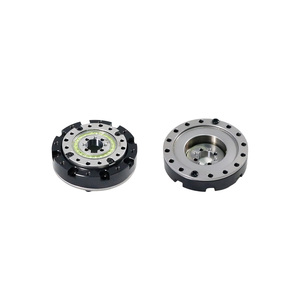

Speed reducers are critical components of robotics systems. They help provide the necessary mechanical advantage for robotic joints and end effectors. Planetary and harmonic gear reducers are especially popular here. They offer high precision, compactness, and exceptional torque. All these are suitable for use in servos which help in load application and easing motor strain.

Industrial Machinery

Reducing mechanical speed is extensively used within industrial machinery. This includes gear motors for conveyor belts, mixers, and pumps. Spur and bevel gear reducers have been very effective here. They have a high efficiency, are easy to install, and provide low to medium loads. They are applied to enhance process efficiency and prevent equipment overload. Therefore, this will reduce the likelihood of mechanical failure.

Renewable Energy

Mechanical mini speed reducers are integral to the systems of renewable energy. This includes wind turbines and solar tracking systems. The wind turbine blades turn at high speed, too high for the generator. The mini speed reducers will then reduce the rotational velocity while augmenting torque to optimal generator levels. Solar tracking systems employ these speed reducers to effectively move solar panels to the optimal position for maximum sunlight exposure.

Product Specifications And Features Of Mechanical Mini Reducer

Technical Specifications

• Ratios: These ratios can range from 3:1 to as much as 100:1 and provide great versatility for distinct applications.
• Torque: The torque can range from 0.1 Nm to several Nm, depending on the type selected and the application it is used in.
• Materials: Most mini reducers come made from steel, aluminum, or high-strength plastic. They all provide the required durability without increasing the weight too much.
• Output Shaft: The output shafts can be of various diameters, usually between 4mm to 20mm. The choice will depend on the load-carrying capacity and the connection requirements of the application.
• Length: It ranges from 30mm to 90mm and is very compact. This, then, enables easy integration even in space-constrained designs.
• Noise Level: It goes as low as 50db. This ensures minimal disturbance, especially in settings where operational noise will be heavily impacting.
• Backlash: The backlash is small, ranging from 1 to 5 arc minutes. It ensures high positioning accuracy, especially in robotics and other precision equipment.

How To Install

The installation of mechanical mini reducers depends on the type. Screw jack types are the easiest to install. Then there are gear types which require more elaborate mounting methods and arrangements. One needs to pay close attention to the alignment, load and torque specifications, and types of gears used. This ensures that the motor integrates well with the reducer for optimal performance.

How To Maintain

• Lubrication: Regular lubrication of the gears and internal components of the reducer ensures smooth operation. It also helps mitigate wear and tear. Always check for any type of grease or fluid leakage as it shows wear or damage in some cases. Replace or replenish it per the manufacturer's recommendations.
• Inspections: Routine checks on the reducer mounted on the equipment can help one detect problems before they magnify. Look for abnormal noises, vibrations, or overheating signs. These problems possess the potential to affect the equipment.
• Alignment and Installation: Proper initial installation ensures the longevity of the reducer. However, misalignment will put unnecessary strain on the components. This will result in mechanical failure over time. One should always check the alignment periodically to ensure it stays correct.
• Wear Monitoring: Monitor for signs of wear on external components. These include seals, shafts, and casings. Worn-out parts can allow contaminants inside the system. This will contribute to a very high wear of the internal components.
• Operating Conditions: Reducers must have their operating conditions maintained within the specified limits. This will aid in reducing strain. Excessive loads and high temperatures can cause damage and failure and may also impact the lifespan.

Quality And Safety Considerations Of Mechanical Mini Reducer

Mechanical mini reducers have to meet stringent quality requirements. It ensures durability and performance before being sold on market shelves. These are mainly influenced by the materials used, design, and application of the mechanical mini reducers in concern.

Material Quality

Materials used for mini mechanical speed reducers range from plastics to metals like steel and aluminum. Plastics are used for light mechanical mini reducers. Metal, on the other hand, is used for heavy mechanical mini reducers because of its strength and durability. They also have an enhanced resistance to wear and fatigue. This is commonly experienced in applications that require heavy use. Metal gears come with better mechanical strength and stability, which enables them to handle any torque transfer or rapid speed variations.

Safety Standards

Mini speed reducers in safety-conscious sectors like aerospace and robotics have to meet rigorous safety standards. These standards include ISO and ANSI. Companies will always check for certifications to ensure that the reducers they select have passed such standards. These certifications deal with parameters like load capacity, efficiency, backlash, and noise level. This will avoid or limit potential hazards.

Load Capacity And Overloading

Each mechanical mini reducer has specified load and torque capacities. Overloading this equipment will lead to reducer failure, which might cause accidents or damage to other connected systems. Buyers must select the appropriate reducer based on their needs to prevent undue strain on this equipment. It will help maintain operational safety and avoid possible hazards.

Heat Dissipation

Excessive heat build-up in mechanical mini speed reducers commonly damages internal components. This may also affect connected equipment. To prevent heat-related accidents, one must regularly monitor and maintain the reducer. Proper lubrication will aid in dissipating heat and minimizing friction. Also, ensure that the operating conditions are within the specified limits of the reducer manufacturer. It will help to avoid heat build-up.

Vibration And Noise

Mechanical mini speed reducers are prone to vibrational and noise issues. Especially in low-precision applications, they affect the surrounding environment and may even disrupt the operation within the space. Companies can reduce occupational noise and vibrations by choosing high-quality, precisely-engineered reducers. They have a balanced output shaft and have been properly installed, maintained, and aligned.

Q&A

Q. Which factors are important when choosing the mechanical mini reducer for a customer?

One must consider the application requirements when choosing a mechanical mini reducer. These requirements include size, load capacity, reduction ratio, and environmental conditions. A functional mechanical mini reducer must be compatible with other equipment and components.

Q. Are mechanical mini reducers universal for all applications?

Mechanical mini reducers are not universal components. Each mini-reducer is designed distinctively for various applications. These range from automotive, robotics, and industrial machinery to aerospace and renewable energy mechanisms. Select the appropriate one for the application to avoid failure and ensure optimal performance.

Q. What are the most common materials for constructing mechanical mini reducers?

Mechanical mini reducers normally use steel, aluminum, and high-strength plastics. Steel has a high mechanical strength and thus is suitable for rugged applications. That is why it is often used in the gears of the mechanical mini reducers. Aluminum comes lightweight and very strong. So, it is ideal for applications where reducer weight is a very critical factor. Plastic offers non-wear-resistant and corrodive-resistant qualities. They are, therefore, used for light-duty or environmentally-sensitive applications.

Q. Do mechanical mini reducers come maintained and monitored during their lifespan by the manufacturer?

Mechanical mini speed reducers usually come unprotected and unmonitored by their manufacturers. They mostly provide guidelines on maintaining the reducer. These include period lubrication and wear checks and operating condition verifications to ensure heat build-up does not occur.

Q. Do mechanical mini speed reducers contribute to energy efficiency in their applications?

Mechanical mini speed reducers do contribute to energy efficiency in their applications. They have been reducing the load and speed transferred from the motor to the mechanism. The mechanical energy is then optimally utilized instead of being wasted as heat. This makes mechanical mini reducers significant components of energy-efficient designs.
