Rubber machine extruder

Types of rubber machine extruders

A rubber machine extruder is a piece of machinery that creates products from rubber by forcing the material through a die in a specific shape. There are a few different ways to classify a rubber extruder based on the design and working principle.

• Based on material feeding mechanism:

  Continuous extruders are built for large-scale production and have consistent feed rates. They maintain a constant pressure and temperature to produce a steady stream of rubber profiles. Intermittent extruders operate differently. They periodically stop and start the feeding of the material through the machine. This can be done because they have batch processes to manage the material.

• Based on the rotation of the barrel:

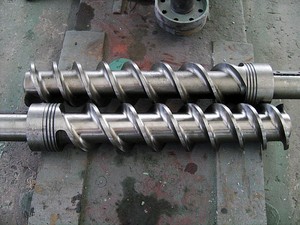

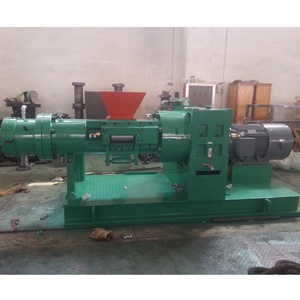

  Single-screw extruders have just one prominent screw in the barrel that works to melt and mix the rubber. Twin-screw rubber extruder machines have two intermeshing or counter-rotating screws that help to heat and mix the rubber material. They are more efficient than single-screw machines because they have better conveying capabilities. Moreover, twin-screw extruders can be designed to have a close or wide spacing between the screws depending on the types of products that need to be made.

• Based on the direction of the flow:

  Parallel extruders have a barrel and screw that are situated parallel to one another. They allow for uniform material distribution and provide adequate heating. Also, they improve the flow of rubber into the die. Conical extruders, on the other hand, have a cone-shaped screw and barrel. They ensure efficient mixing and melting of the rubber material. Moreover, conical extruders are more suited for dense and viscous materials.

Specifications and maintenance of rubber machine extruders

Specifications

• Model and size: An extruder's model and size determine its capacity. Small models can handle 10 to 20 kilograms of rubber per hour. Larger ones are for big production lines.
• Temperature control: Extruders have heating and cooling units. They keep temperatures between 150 and 250 degrees Celsius. This is the right heat to melt and mix rubber.
• Power source: Most rubber extruders use electricity. The power is measured in kWh. A big machine uses about 30 kWh. Smaller, mobile ones can use 5 kWh.
• Length-to-diameter ratio: This is a key design feature. It measures how long the screw is compared to its width. A common ratio is 24:1. Longer screws mix rubber better. Shorter ones push the rubber out faster.
• Safety features: Things like pressure release, emergency shutdowns, and covers prevent accidents. Heated parts have insulation to stop burns. Workers cannot touch live parts.

Maintenance

• Daily checks: Operators should inspect the machine each day. Look for signs of damage to the screw, barrel, heaters, and gaskets. Check water cooling lines are not leaking. Make sure the heater cooling fans are working. Also, look over the electrical wires and components. Check the fasteners to see if they are loose so as to avoid accidents. Any damaged part or loose fastener should be fixed right away.
• Lubrication:Rubber extruders have moving parts like bearings and drives that need lubrication. Apply grease to bearings every month. Lubricate chain drives with grease or oil monthly too. Follow the manual and only use the right lubricants.
• Cleaning:Materials tend to build up in the barrel and die. This can affect the quality of the rubber. It is, therefore, important to remove such build-ups. Use cleaning compounds and tools specified by the manufacturer to clean after production.
• Spare parts: New parts for the extruder should be genuine and approved by the manufacturer. Follow the maintenance schedule closely. Pay attention to barrels, screws, heaters, and gaskets that get worn or damaged over time and replace them.

Scenarios of rubber machine extruders

The main application of rubber extruder machines is to produce rubber products. Hence, the usage of rubber extruder machines will increase with the already high demand for rubber products in different industries, such as construction, automotive, and consumer goods. Here are some more usage scenarios of rubber extruder machines:

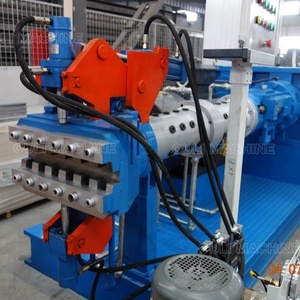

• Production of Tires: Rubber extrusion machines are used to produce the inner linings, tread, and sidewalls of tires. The parts are then assembled together to create a complete tire.
• Pipes and Hoses: These rubber products are manufactured according to different industry specifications using rubber-extrusion machines. The hoses and pipes have excellent flexibility and durability, making them usable in industries like agriculture, automotive, and construction.

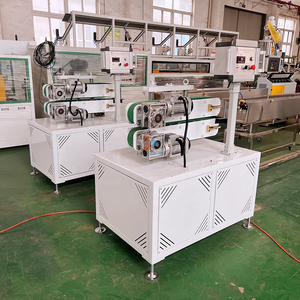

• Seals and Gaskets: Rubber seals and gaskets are used to make waterproof and airtight joints in industries like automotive and construction. The precision and consistency of the rubber extruder machines help create durable seals and gaskets.
• Automotive Components: Apart from tire manufacture, rubber extrusion machines are used to make other automotive parts, such as weather stripping and suspension bushings. These parts require high durability and flexibility, which are possible with rubber machines.

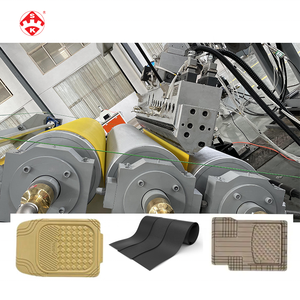

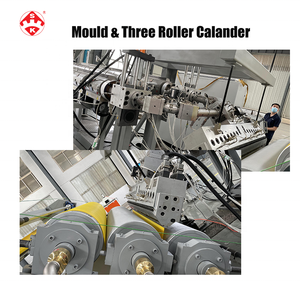

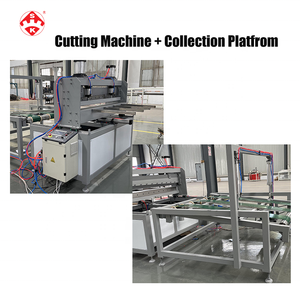

• Floor Mat and Grips: The non-slip floor mats and grips are made with a rubber extruder machine. The components require abrasion resistance and grip, which the machine can provide.
• Medical Tubings and Hoses: Rubber extruder machines of precise specifications create medical-grade tubing and hoses. The tubes are durable, flexible, and clean, making them usable in different medical applications.

How to choose rubber machine extruders

Considering the following parameters of rubber extruder machines can help business buyers make the right choice.

• Production capacity

  It is the amount of material the extruder can process in a given time and is usually expressed in kilograms per hour. Depending on business needs, they can choose the appropriate model based on the required production volume and the rubber extruder's available capacity.

• Material compatibility

  Not all rubber extruders can handle all types of rubber. Some are designed for specific types of rubber, such as natural rubber, synthetic rubber, or silicone rubber. Make sure the material that can be processed matches the type of rubber used in the production line.

• Extrusion temperature and pressure control

  The quality of the extruded product is often influenced by the temperature and pressure during the extrusion process. Choose those with precise control over temperature and pressure to help ensure product quality and stability.

• Energy efficiency

  Consider the energy efficiency of the rubber machines, as this directly impacts operating costs. Select those with high energy efficiency and low power consumption.

• Maintenance and service

  Buyers should consider the maintenance and service of rubber extruders. Choose those with good maintenance support and service, as this helps to solve problems quickly and keep the equipment running smoothly.

FAQ

Q1: What are the components of a rubber extruder machine?

A1: A rubber extruder is generally made of five main parts, including a driving part, an extrusion part, a heating-cooling system, a cutting system, and a feeding system.

Q2: What types of rubber extruders are there?

A2: Generally, there are two main categories of rubber extruders in the market—single screw extruders and dual screw rubber extruders. They are further divided into several sub-types.

Q3: What materials are suitable for rubber extrusion?

A3: Rubber extrusion machines can process various materials like natural rubber, styrene-butadiene rubber (SBR), butyl rubber, epdm rubber, etc. Each material has distinct features and is used in different applications.

Q4: What products are made using rubber extrusion?

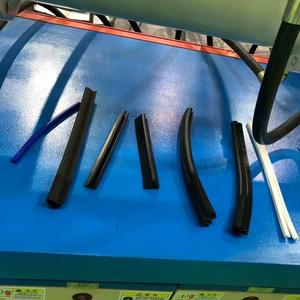

A4: Rubber extruders are widely used to produce rubber profiles, seals, gaskets, tubing, hoses, wires, cables, and custom components for various industries.
