A CNC surface grinder is a type of machining and grinding tool that can produce exceptionally flat surfaces. It performs functions such as cutting, sanding, and shaping, among others. Here are some common types of surface grinders.
They are machines that use a horizontal spindle and a rectangular worktable. They work well for large to medium-sized work pieces that require grinding. Work pieces are often held from the top and side, and the grinding wheel moves from the side to side. Horizontal grinders are great for work pieces that are parallel to the wheel and that do not require intricate shapes.
These are machines that have a round grinding wheel and a round worktable. They are designed to grind circular work pieces, and the work pieces are held in place on the worktable with a magnetic chuck or fixturing. Rotary surface grinders are also known as Blanchard Grinders, and they are great for grinding large or small work pieces that require precision and accuracy.
They are designed for heavy stock removal at a slow table speed. The grinding wheel works at a slow rate to create a smooth surface. Creep feed grinders are often used on work pieces that are too hard to be cut by other types of grinders. They are also great for work pieces that are irregular in shape and have intricate features.
The CNC surface grinder comes with various specifications, depending on the model and brand. Below are some of the key specifications:
The CNC surface grinding machine worktable is made of a cast iron material that is sturdy and durable. It is designed to provide a stable platform for holding the workpiece during the grinding process. The worktable typically has a magnetic chuck that securely clamps ferrous workpieces, such as steel, to prevent them from moving during grinding operations.
The spindle of the CNC surface grinder is an important part of the machine that rotates the grinding wheel. It is usually made of high-strength steel material to ensure stability and rigidity during the grinding process. The spindle may have different speed options to accommodate various grinding tasks and materials. CNC surface grinders with more powerful spindles can achieve higher rotational speeds, allowing for faster and more efficient grinding operations.
The CNC surface grinder uses a grinding wheel to remove material from the workpiece. The grinding wheel is made of an abrasive material and comes in different shapes, sizes, and compositions to suit various grinding applications. For instance, a silicon carbide grinding wheel is ideal for grinding non-ferrous metals. The CNC surface grinder's wheel is mounted on the spindle and rotates at high speeds during the grinding process.
The CNC surface grinder moves along precision linear guideways to ensure accurate and smooth movement of the grinding head and worktable. The linear guides are made of hard steel and are typically coated with a lubricant to reduce friction and wear, thereby facilitating smooth and precise motion control of the machine.

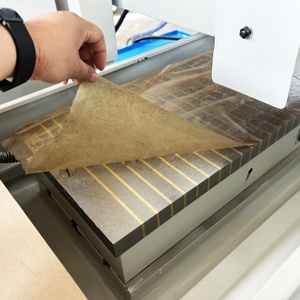

The CNC surface grinder uses a magnetic chuck to hold the workpiece in place during grinding. The magnetic chuck is made of a magnetic material that securely clamps the workpiece without distorting it. This allows for uniform grinding and high precision. The CNC surface grinder has an electromagnetic control system that can adjust the magnetic force according to the workpiece material and size.
Maintenance tips
Proper maintenance can help keep the supertec grinders in optimal condition and extend its lifespan. Here are some maintenance tips for the grinder:
CNC surface grinders are widely used in various industries and applications, further promoting the development of the surface grinder market.
CNC surface grinders are used for processing engine parts, crankshafts, cylinder heads, and other components in the automotive industry. They can achieve precise surface grinding, ensuring the quality and performance of automotive parts.
In the manufacturing and processing of molds, CNC surface grinders can be used to grind mold inserts, cavity surfaces, and sliders. This ensures the dimensional accuracy and surface quality of the mold, thereby improving the quality and precision of the final product.
CNC surface grinders are essential in the aerospace industry. They can be used to process and grind critical components such as turbine blades, engine parts, and structural components. CNC surface grinders can achieve high-precision grinding, meeting the stringent requirements of the aerospace industry for component quality and performance.
In the production of precision machinery, CNC surface grinders play an important role in processing parts such as shafts, gears, and bearings. The use of CNC surface grinders can achieve high-precision grinding, ensuring the dimensional accuracy and surface finish of the parts.
In the energy sector, CNC surface grinders are often used to process components such as turbines, generators, and transmission parts. They can achieve precise grinding of these components, ensuring their performance and operational efficiency.
CNC surface grinders are widely used in the medical equipment industry. They can be used to process surgical instruments, prostheses, and components of medical devices. CNC surface grinders can achieve precise grinding, ensuring the dimensional accuracy and surface finish of medical equipment components.
In the electronics industry, CNC surface grinders are used to process components such as semiconductor wafers, printed circuit boards, and precision electronic parts. CNC surface grinders can achieve high-precision grinding, meeting the requirements of miniaturization and precision in the electronics industry.
When selecting cnc surface grinder for sale, it is essential to understand the specific requirements and priorities of different industries.
It is critical to know which materials are being processed, as well as the desired finish and tolerance levels to ensure the surface grinder's capabilities align with the user's needs. For instance, industries that prioritize precision, such as the aerospace or automotive sectors, need CNC surface grinders that will deliver consistent results within very tight tolerances. Such industries pay attention to the machine's precision, accuracy, and repeatability. On the other hand, industries that prioritize efficiency, such as those in mass production, will need CNC surface grinders with high-speed capabilities and automation features. Such industries would be more concerned about the machine's productivity and integration with other production systems.
Key specifications to evaluate include the tormach surface grinder control system, the machine's workpiece capacity, its spindle power and speed, the size of its grinding wheel, the feed and traverse rates, the accuracy of its positioning and repeatability, and automation and software integration capacity. All these features of the machine will need to align with the industry's priorities and application requirements.
It is important to ensure that the CNC surface grinders chosen have a robust build, high-quality components, and are well-constructed to withstand the demands of industrial use. This means paying attention to the materials used to manufacture the grinders, checking the overall workmanship, and verifying that the grinders are from reliable brands.
It is equally important to choose suppliers that can provide excellent after-sale support. This includes having a technical team that can provide guidance and training on the use and maintenance of the cnc surface grinder and offering timely repair and spare parts services when needed.
Q1: What is the difference between horizontal and vertical surface grinders?
A1: The primary difference is the orientation of the grinding wheel spindle. In horizontal surface grinders, the spindle is horizontal, and the grinding wheel is positioned parallel to the worktable. This allows for high-precision flat grinding. On the other hand, the spindle in vertical surface grinders is positioned vertically, and the grinding wheel faces downwards. This allows for more intricate and complex workpiece geometries.
Q2: What are the advantages of supertec grinders?
A2: CNC surface grinders offer several benefits, including high precision, automation compatibility, and the ability to handle various materials. They also ensure repeatable and consistent grinding results.
Q3: Can CNC surface grinding machine be used with different materials?
A3: Yes, CNC surface grinders are versatile machines that can work with a wide range of materials. Common materials processed using surface grinders include steel, stainless steel, aluminum, brass, copper, and other non-ferrous metals. CNC surface grinders can also work with harder materials such as titanium, tungsten, and ceramics.
Q4: What are the common applications of tormach surface grinder?
A4: CNC surface grinders are widely used in various industries for applications that require high-precision surface finishing and metal removal. They are suitable for grinding small workpieces with intricate geometries, hardened steel, and high-precision molds. CNC surface grinders are also used in tool and die making, aerospace, automotive, medical device manufacturing and many other industries.
